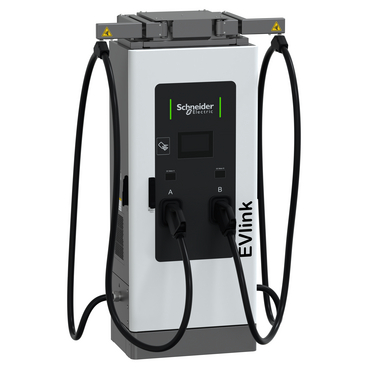

Schneider EVlink Pro DC 60 V2 EV charger
DC fast charging · 60 kW

Schneider EVlink Pro DC 60 V2

Supply & install Schneider Electric

Supplied and installed across Australia by enevi's EV charging specialists, Schneider Master EcoXpert certified. Tell us about your site and we'll scope the right power output, supply capacity and connectors.

Overview

The Schneider EVlink Pro DC 60 V2 is a floor-standing DC fast charging station built for public and commercial charging. It delivers up to 60 kW through two CCS2 connectors, and can charge two vehicles at once at 30 kW each. A 7 inch screen, embedded Wi-Fi and 4G, OCPP 1.6J and ISO 15118 plug and charge make it suited to sites that need monitoring, smart charging and an optional payment terminal.

Typical applications

Public charging sites, commercial and industrial buildings, fleet depots and shared parking where DC rapid charging is needed.

Key specifications

Product referenceEVD2S60
PowerUp to 60 kW DC
ConnectorsDual CCS2, 150 to 1000 V DC, 200 A max
Simultaneous chargingTwo vehicles at 30 kW each
Supply380 to 415 V AC, three phase, 50/60 Hz
Efficiency97% peak, 36 W standby
ConnectivityWi-Fi and 4G, OCPP 1.6J, ISO 15118
Display7 inch screen, multi-language
MountingFloor-standing
Cable optionsSeveral lengths, with or without cable management
StandardsIEC 61851-1 ed3, IEC 61851-23/24 ed1
InstallationFactory-trained, licensed technicians

Scoping a site?

We supply, install and maintain the full Schneider Electric range across Australia. Tell us what you need and we'll map the power and the plan.
